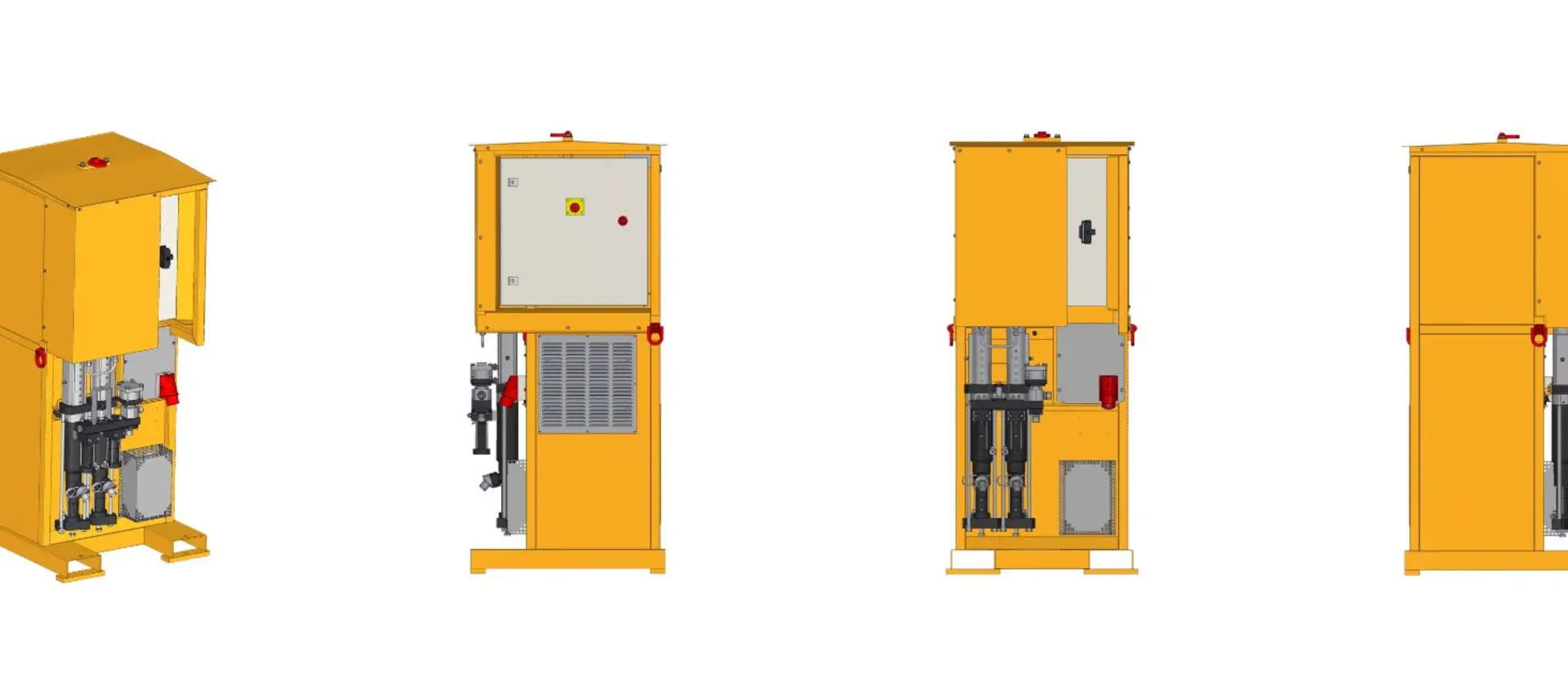

DP 160-E grouting and flushing pump

DP 160-E grouting and flushing pump

The pumps from the DP series are used as standard models for grouting stations of the various VS and AVS units. They are also suited for all other areas of application for which grouting and flushing pumps can be used. The pump units are equipped with a protective frame and base frame, and the pump units are propelled by an electric-hydraulic drive unit. The entire unit can be controlled via an electric cabinet.

-E

Drive type

600 l/min

Max. flow rate

80 bar

Max. flow pressure

55 kW

Drive power

2,800 x 1,050 x 2,200 mm

Dimensions (LxWxH)

2,700 kg

Weight
