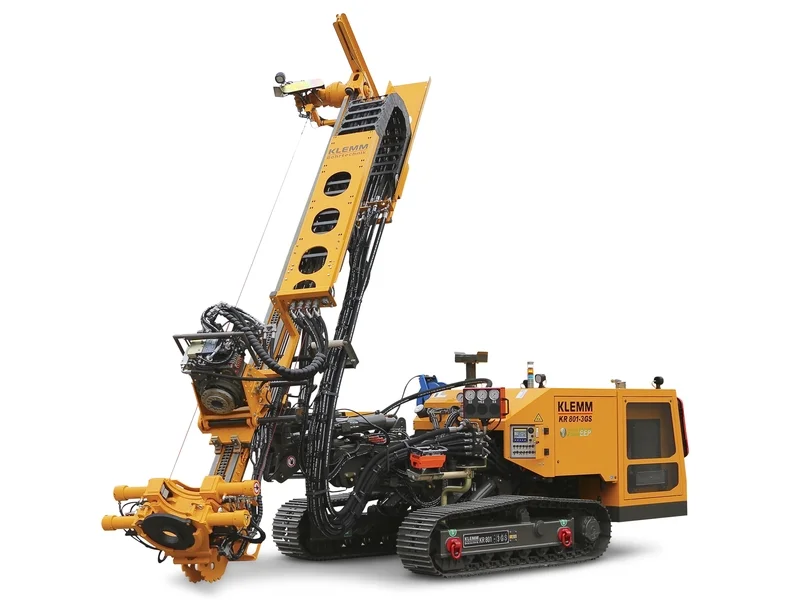

The compact and powerful universal and anchor drilling rig from KLEMM.
Functional safety
The functional safety of the machine controls complies with Performance Level C (ISO 13849), making its design extremely resistant to faults and fail-safe. The ROM and SPM modes are available in the machine in accordance with EN 16228. The machine is pre-fitted for installation of a KLEMM Bohrtechnik interlocking guard.
Load-bearing kinematics assembly
The reinforced boom assembly offers the greatest possible flexibility and at the same time enough load-carrying capacity for the operation of moderately heavy drill head units of the KH and KD range in conjunction with a maximum usable rod length of 4000 mm.
Future-oriented mobile hydraulics
The utilisation of fuel-saving, dual pump, load-sensing hydraulics achieves an extremely efficient hydraulic supply of the respective active consumers on the drilling rig. The operation of the newest generation of rotary heads with high-pressure hydraulics and a operating pressure of 350 bar maximum is a trend-setting feature. The newly developed machine exterior trim sets new standards in ergonomics, maintainability and design.
| Universality | The concept of the drilling rig is designed for versatility. A variety of options are available. |
| Modularity | A variety of matching kits suited to the respective application is available. |
| Detection bores for unexploded ordnance | With a two-part gripper loader for auger drill rods, the drilling rig can be configured for detection bores. |
| Telematics | The optional KLEMM DataLink.AIR module for the transfer of machine, process and service data into the cloud. |
